ATV

Various ATV/UTV Products

Twin-tube type / Mono-tube type / Sub-tank type



PRODUCT DESCRIPTION

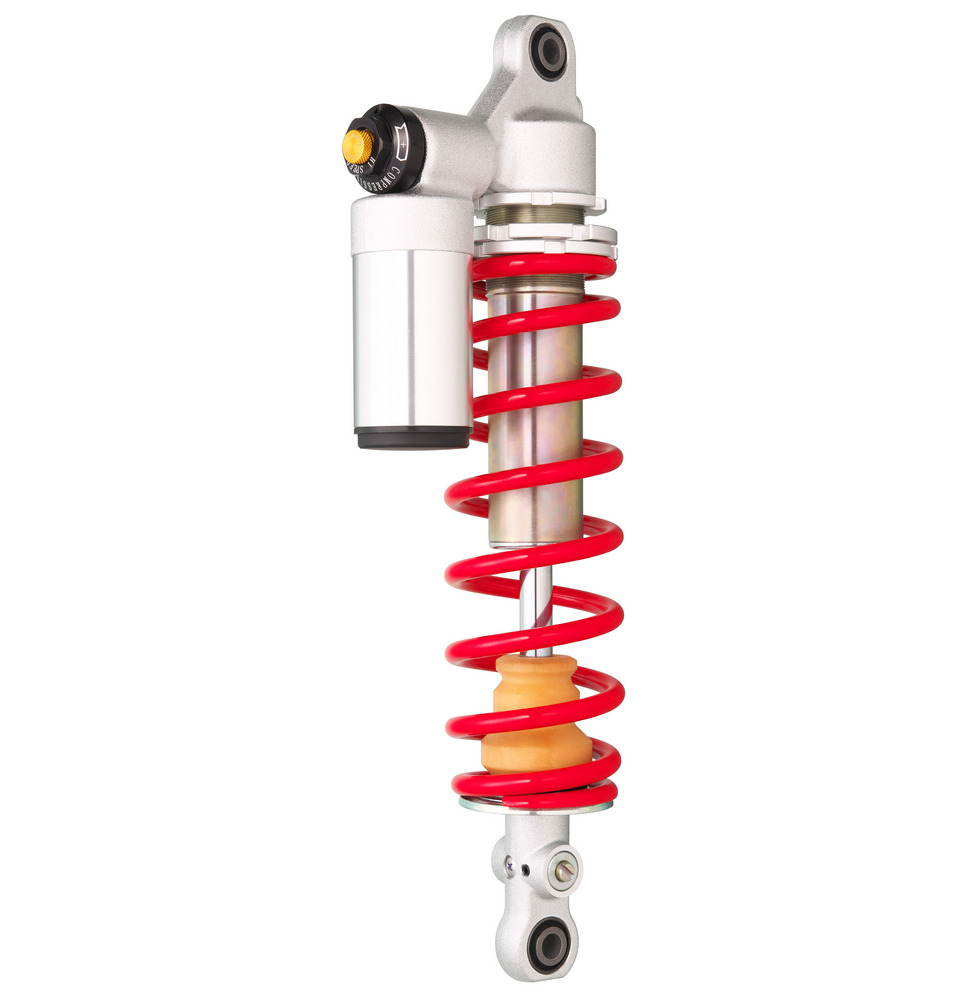

Sub-Tank Type

Piston Rod Piston Main Pipe
O/D
ψ8 ψ16 ψ20
ψ10 ψ25 ψ30
ψ11 ψ25 ψ30
ψ14 ψ36 ψ42



Mono tube Type (Free-piston)

Piston Rod Piston Main Pipe
O/D
ψ11 ψ32 ψ38
ψ14 ψ36 ψ41
ψ14 ψ36 ψ42
ψ14 ψ40 ψ44
ψ16 ψ46 ψ52

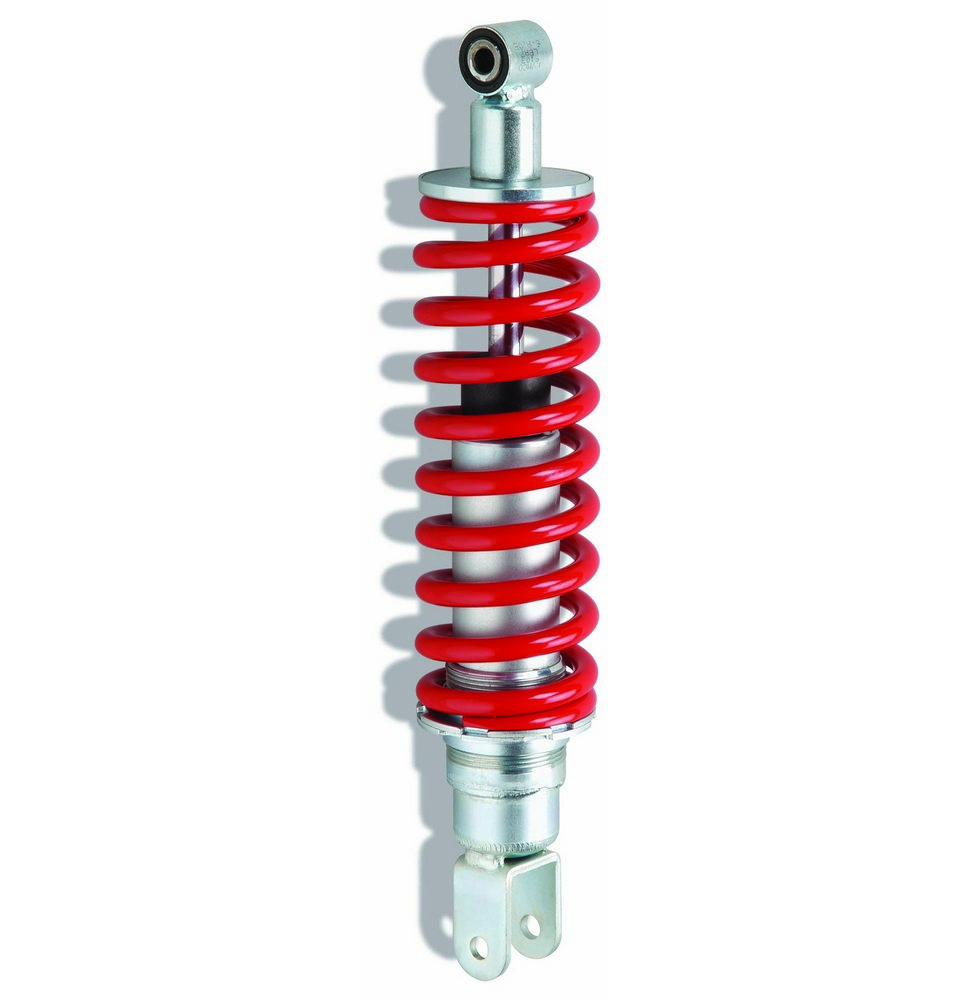

Twin Tube type

Piston Rod PISTON MAIN PIPE
O/D
ψ8 ψ16 ψ24
ψ10 ψ21 ψ30
ψ32
ψ12.5 ψ25 ψ38.1
ψ30 ψ42.7
ψ15 ψ30 ψ46.2
ψ47
